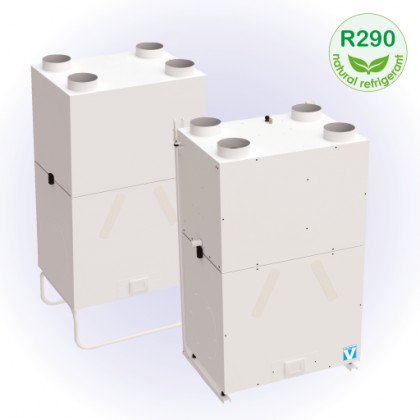

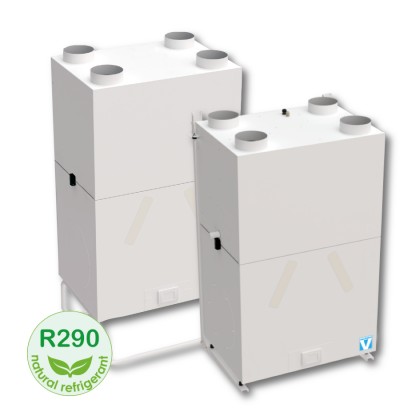

Cool Breeze Plus
- COOL BREEZE PLUS FEATURES
- Up to 4.3 kW of total cooling provided
- Fresh air supply is lowered by up to 20°C
- Uses R290 - eco friendly, natural refrigerant - over 225 times more environmentally friendly than R32
- COP up to 6.5
- GWP Rating 3
- EER up to 4.6
- Automatic control of supply temperature via integral sensor - no false activation from poorly sited external thermostat
- Optional manual override for user preference
- Universal handing via intelligent software
- Very quiet integral condenser
- Front access for servicing
- Wall or floor installation (with appropriate wall bracket or floor stand)
- MAXI PLUS MVHR FEATURES
- High quality, energy efficient EC motors with low specific fan power
- 89% efficient counter-flow heat exchanger
- Very low noise levels
- Enhanced acoustic option available
- Fully automatic summer bypass
- Intelligent software for independent motor control
- 0-10V connections can be used for:
- BMS - for remote motor shut-off
- CO2 detector
- home automation system
- Tool free front filter access
- External pre-heater option
- Passive House Certified option
- ALL UNITS MANUFACTURED IN THE UK
General
- Designed to provide an effective solution for mitigating overheating in larger residential properties, particularly during summer months
- It meets the standards used in CIBSE TM59 assessments and Approved Document O of the Building Regulations
- Designed for seamless integration with the Vectaire Maxi Plus MVHR range
- Offers a compact, energy-efficient, and compliant approach to indoor temperature regulation
- The self-contained, sealed-for-life system, delivers up to 4.3 kW of total cooling capacity without the need for an external condenser
- Automatically senses the room temperature and that of the incoming fresh air to determine when cooling is required
- Removes heat from the supply air allowing the MVHR to distribute the cooled air throughout the property
- Provides a consistently comfortable indoor environment
- The Vectaire range of MVHRs has been designed to ensure good indoor air quality in every type of domestic environment. They comply with UK Building Regulations for mechanical ventilation with heat recovery
- The system is ideally suited for use in new-build and retrofit applications where regulatory compliance and system efficiency are critical
Back to top

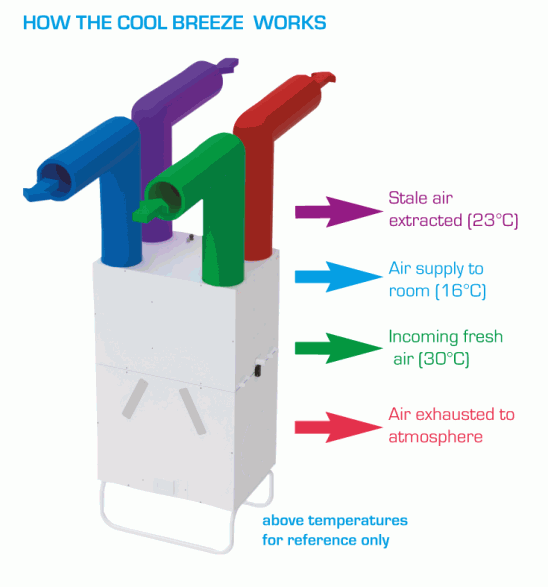

How the Cool Breeze Works

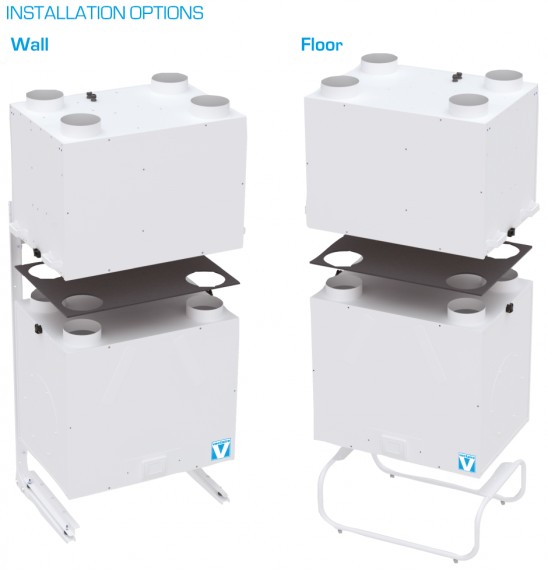

Intallation Options

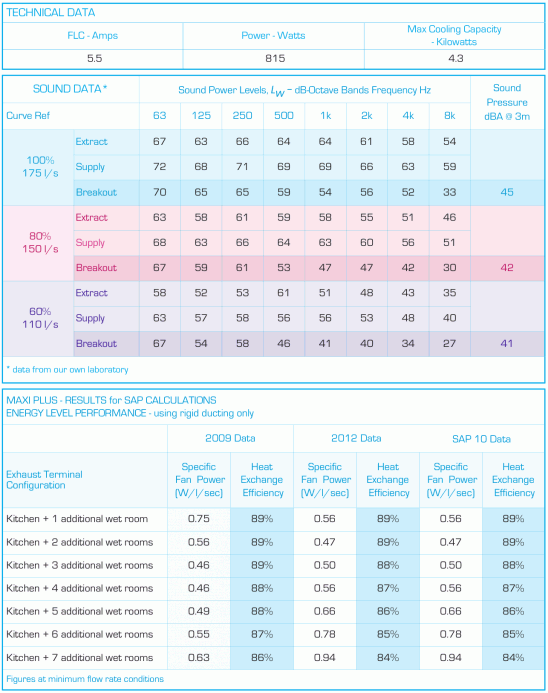

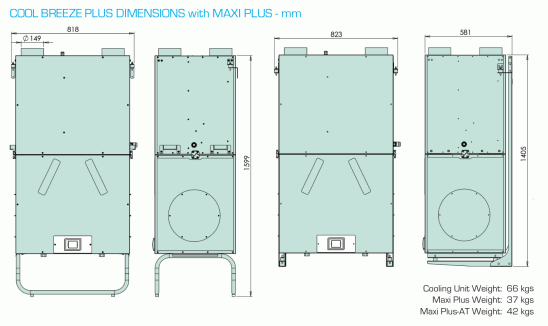

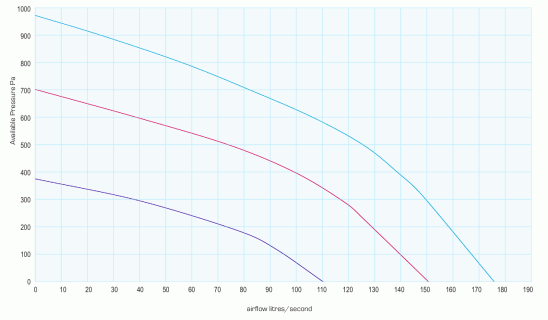

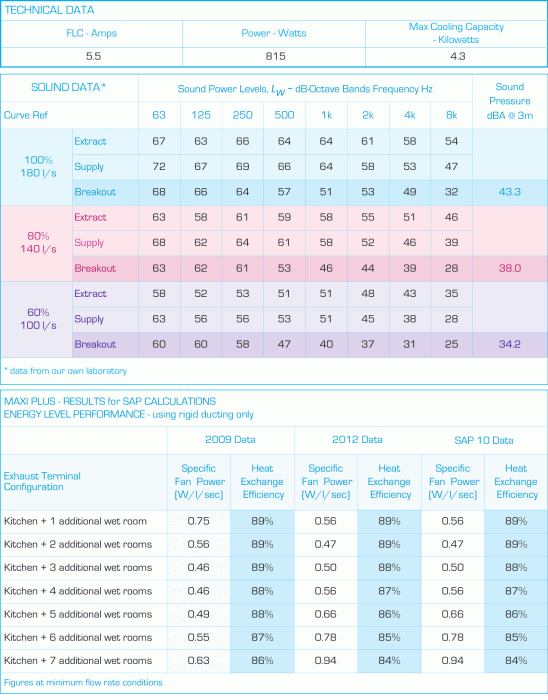

Technical

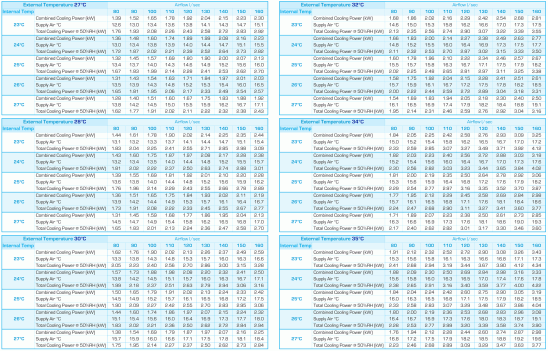

Cooling Data
