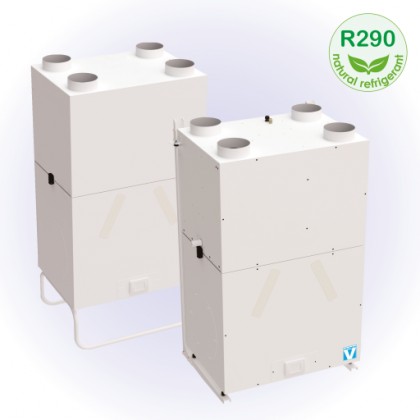

Cool Breeze
- reduces the risk of over-heating in residential properties
- delivers up to 4.1 kW total cooling capacity
- Used R290 eco friendly refrigerant
- COP up to 4.3
- GWP Rating 3
- EER up to to 3.2
- integrates with Maxi MVHRs giving compact, energy efficient, indoor temperature regulation
- self-contained, sealed for life system
- senses when cooling required via integral sensor
- very quiet with low running costs
- floor or wall installation
- universal handing
- Maxis with summer bypass and frost-stat and up to 92% heat exchange efficiency
- ideal for new-build and retrofit where regulatory compliance and system efficiency critical
- Vectaire MVHRs comply with Building Regulations Parts L1A 2013 and F 2013
- compliant with CBSE TM59 guidance for over-heating risk assessments and Approved Document O of Building Regulations
- manufactured in UK to ISO 9001:2015 and 14001:2015
General
COOL BREEZE FEATURES
- Up to 4.1 kW of total cooling provided
- Fresh air supply is lowered by up to 20°C
- Uses R290 - eco friendly, natural refrigerant - over 225 times more environmentally friendly than R32
- COP up to 4.3
- GWP Rating 3
- EER up to 3.2
- Automatic control of supply temperature via integral sensor - no false activation from poorly sited external thermostat
- Optional manual override for user preference
- Universal handing via intelligent software
- Very quiet integral condenser
- Front access for servicing
- Wall or floor installation (with appropriate wall bracket or floor stand)
MAXI MVHR FEATURES
- High quality, energy efficient EC motors with low specific fan power
- 92% efficient counter-flow heat exchanger
- Very low noise levels
- Enhanced acoustic option available
- Fully automatic summer bypass
- Intelligent software for independent motor control
- 0-10V connections can be used for:
- BMS - for remote motor shut-off
- CO2 detector
- home automation system
- Tool free front filter access
- External pre-heater option
- Passive House Certified option
Back to top
Compliance
.COMPLIES WITH
- CIBSE TM59 tuidance for over-heating risk assessments
- Approved Document O of the Building Regulations
- Building Regulations for enhanced energy saving capability
- Building Regulations for reliable, efficient ventilation
- EU RoHS Directive Compliant.
- Complies with IEC60335-2-80, LVD2006/95/CE and EMC2014/30/UE (European Directive against radio interference and electro-magnetic compatibility
- manufactured in UK to ISO 9001:2015 and 14001:2015
- CE marked
- MVHR SAP PCDB Listed
- Cool Breeze Registered design
Back to top

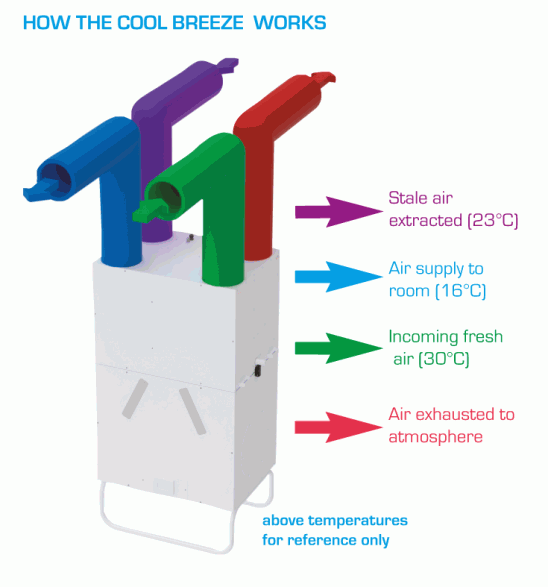

How the Cool Breeze Works

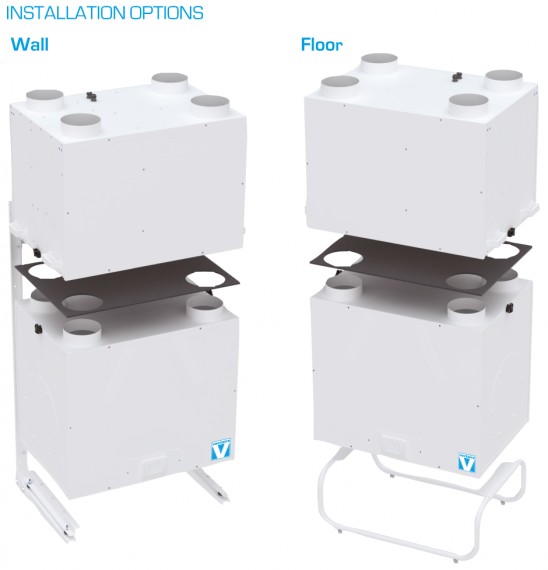

Wall and Floor

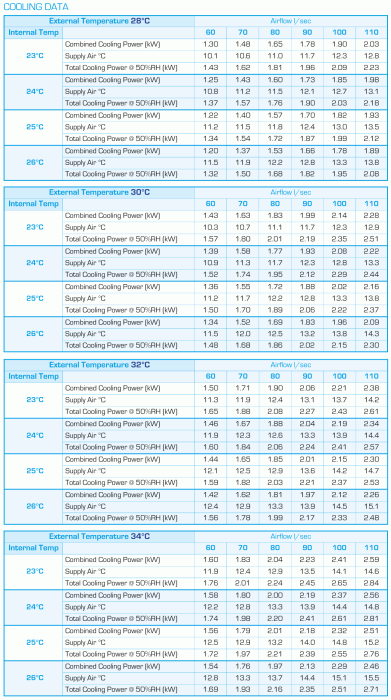

Cooling Data

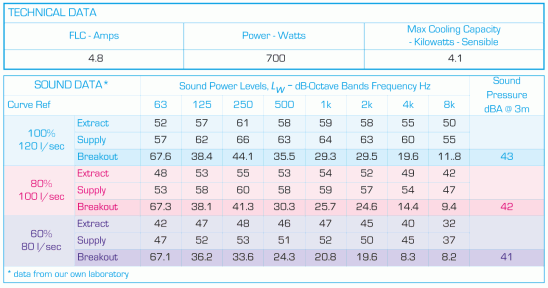

Technical & Sound
Download
