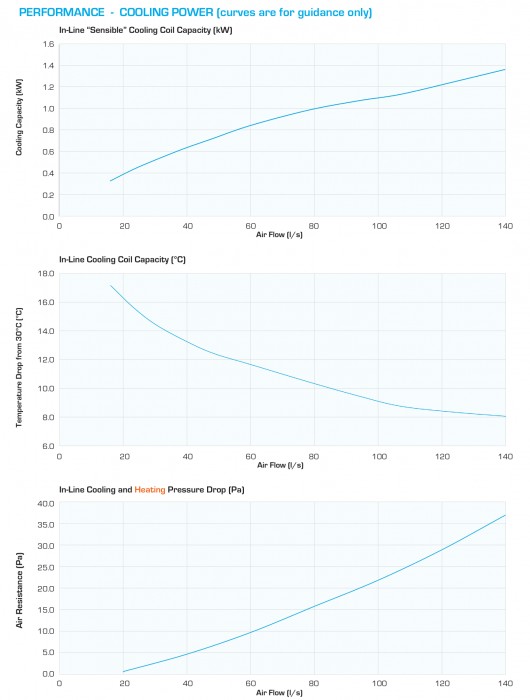

• The Vectaire Cool-Aire is an in-line cooling/heating module that utilises an existing water circuit within the property to cool the air flow by up to 17°C or heat it by up to 29°C
• Its slimline design allows it to fit into any ceiling void of minimum 250mm height.

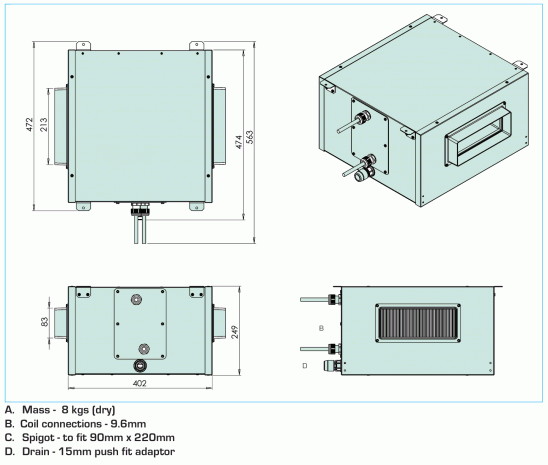

• Universal handing allows the air to be passed in either direction over the coil through the 220mm x 90mm spigots at either end.
• Internal, integral thermal lining - no exterior lagging required - no additional space taken up in ceiling void.
• Designed to achieve compliance with CIBSE TM59 assessments and Approved Document O of the Building Regulations.
• Models are available with 2 or 3 port valves and actuators which can integrate seamlessly with any Vectaire MVHR for autonomous cooling.

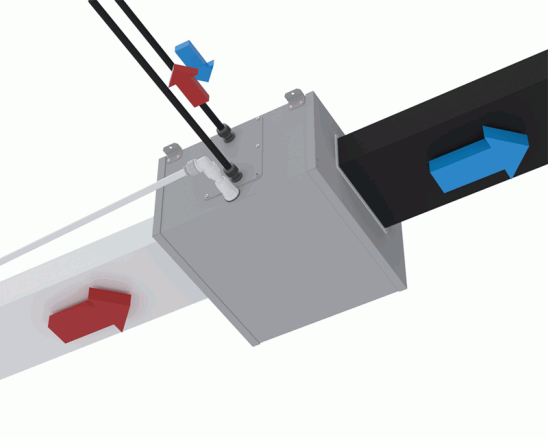

• The Cool-Aire should be placed in the room supply ducting of a Vectaire MVHR allowing for up to 93% heat recovery together with total automation of the coil.

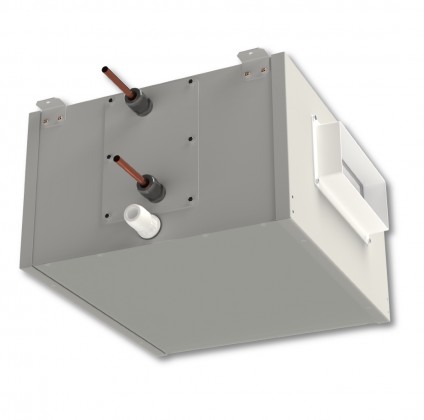

• The Cool-Aire is complete with hanging brackets for ceiling mounting. It can also be supported from the base by drop rods or a plinth.
• The Cool-Aire is internally angled to encourage condensate flow out of the 15mm push fit connector.

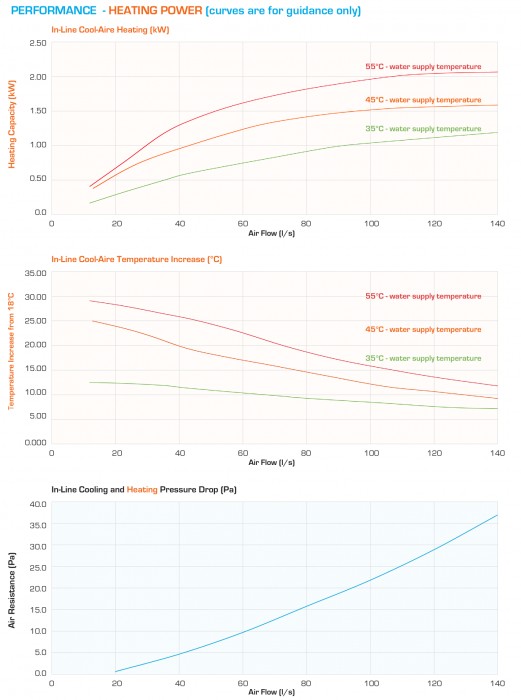

• Once the fresh air from the outside has passed through the MVHR it is pushed through the Cool-Aire which uses its 1.5kW capacity to cool the air by up to 17°C or heat it by up to 29°C when used with a hot water circuit.

Designed to achieve compliance with CIBSE TM59 assessments and Approved Document Oof the Building Regulations

• Cool-Aire 1 - Base unit only
• Cool-Aire 2 - Base unit with ½” female thread 2-port valve and 230v actuator
• Cool-Aire 3 - Base unit with ½” female thread 3-port valve and 230v actuator
