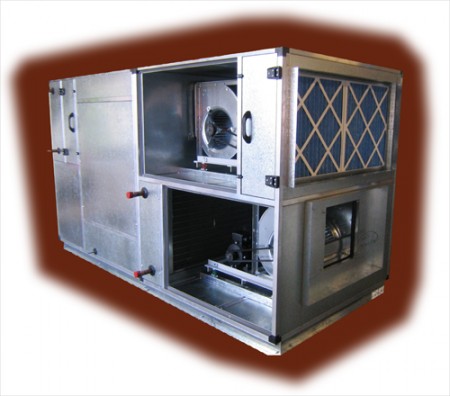

Air Handling Units - Custom Built
VECTAIRE offers an extensive range of supply/extract units and associated ancillary equipment. Fans are available which cater for air volumes up to 20 m3/sec, for both internal and external applications. Most design parameters can be accommodated, and among the many variants we are able to provide are the following.
General
Cases
- single or double skinned with 25mm or 50mm thick panels.
- different panel infill, including a combination of high-density mineral wool and barrier matt to give high noise reduction.
- differing panel skin materials including stainless steel, aluminium and plastic coated sheet steel.
- powder coat paint finish to any BS or RAL number to either internal, external or both surfaces.
- casings supplied in "flat pack" form to facilitate site assembly.
Components
The following components can be readily catered for:
- Filters
- carbon
- hepa
- grease
- washable
- sisw
- duplex (for low profile)
- twin motors
- single phase
- 2 speed
- mounted out of air stream
- fitted with standby
- Run-a-round coil systems
- Thermal wheels
- Gas fired heaters - indirect and direct
- Fans
Back to top
Specification
Units can be designed to meet the requirements of the following:
- HTM03/01
- CO4
Controls
Any variation of control package can be supplied:
- simple pre-wiring of motor to an external isolator
- an in-built control panel pre-wired to motors, damper motors, sensors etc
