"X-Mart" Standard Extract Fan
- General
- Specification
- Compliance
- Range
- Features
- Installation
- Wiring
- Pressure
- Dimensions
- Data
- Accessories
- Typical specification
- Leaflet

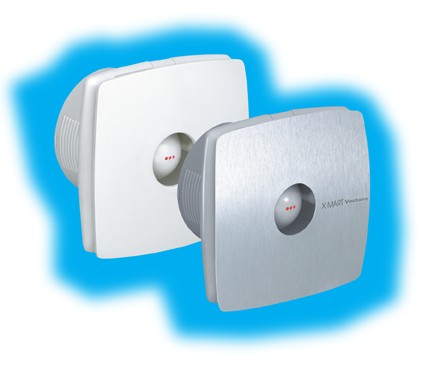

- Deluxe low profile axial fans
- Stainless steel or white
- 18 models
- IPX4 Splashproof
- 3 sizes for toilets, shower-rooms, bathrooms, utility rooms and kitchens
- For walls, ceilings or windows (with window kit)
- Standard, timer and humidity control
- Exceeds Building Regulations requirements (including new Document F)
General
- axial fans to exhaust air and fumes directly outside or through short lengths of ducting
- new, technically innovative, to complement modern decor
- indicator light to show when operating
- front easily removed (no screws) for cleaning
- quick fit installation system for walls
- easy plasterboard ceiling installation with (optional) ceiling ring
- window installation requires window kit
- protection against backdraughts
- quiet operation
- adjustable timer - 3-15 minutes
- dynamic humidistat with night-time set-back and anti-hunting device
- IPX4 Splashproof - can safely be installed in Zones I and II
Back to top
Specification
- casings from shockproof and heat resistant plastics
- double insulated motors of shaded pole type mounted on self-lubricating, sealed ball bearings for long life
- motors fitted with thermal safety cut-out
- maximum ambient temperature - 40°C
Back to top
Compliance
- EN60335-2-80
- EC Low Voltage Directive 73/23-93/68
- EC Directive EMC98/336
- CE marked
Back to top
Range
WHITE
- XM10,12,15 - standard
- XM10T, 12T, 15T - with overrun timer
- XM10H, 12H, 15H - with humidity control and timer
STAINLESS STEEL
- XM10SS, 12SS, 15SS - standard
- XM10TSS, 12TSS, 15TSS - with overrun timer
- XM10HSS, 12HSS, 15HSS - with humidity control and timer
Back to top
Features
Fan Profile
Easy Electrical Connection - just lift protection lid
Quick fix wall installation (no screws)
Front easily removed for cleaning - no screwsBack to top
Wall
Wall - Quick Fix
Ceiling
Window
Timer & Humidistat
Standard
Fixed Grille
Gravity Grille
Wall Vent Kit
Wall Duct Kit
Ceiling Ring
Typical specification
Supply and install an XM10HSS axial fan with a stainless steel front cover as supplied by Vectaire Ltd, Lincoln Road, Cressex Business Park, High Wycombe, Bucks, HP12 3RH.
The fan is to be suitable for installation either into ceiling, wall or window (with the appropriate accessories), and be complete with an integral, adjustable, dynamic humidistat and an integral adjustable timer. There should be a neon on the front of the fan to indicate when it is operation. The fan casing should be made of shockproof and heat resiistat plastic, contain a motor with sealed, self-lubricating bearings, and be protected with a thermal cut-out.
The fan should be double insulated and be suitable for installation into Zones I and II.
The fan is to be CE marked and comply with current EC Low Voltage Directive EMC89.336 and with BSEN60529. The fan should comply with Building Regulations requirements for installation into a bathroom or shower room.
...
