General

• for wall or loft insulation
• speed controller incorporated within casing (if installed in loft remote controller must be used)
• optional cooker canopy can be used when siting above cooker - canopy incorporates filter, light and boost control
• choice of 5 low speed settings on installation for precise ventilation control
• runs continuously at low speed
• can be switched to higher speed for predetermined length of time
• up to 80% of heat recovered
• optional summer ventilation switch prevents heat recovery but maintains ventilation during summer months
• controls condensation
• whisper quiet operation

Specification

• robust aluminium plate heat exchanger for long life and high efficiency rating - easily removed for maintenance
• casing from white aludip steel

Compliance

• EN60335-2-80
• EC Low Voltage Directive 73/23-93/68
• EC Directive EMC89/336
• CE marked
• BEAB Approved

Range

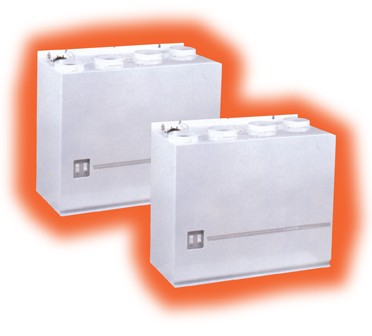

• WHHR150 - for dwellings up to 350m3
• WHHR250 - for dwellings up to 460m3

Features

canopy for above cooker installation

"WHHR" with front removed

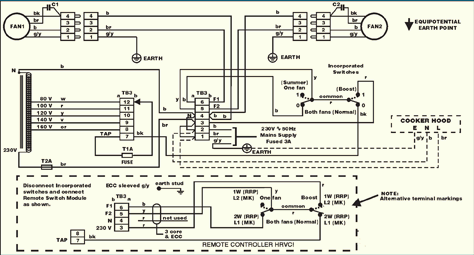

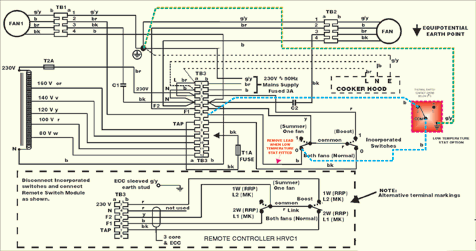

Wiring

WHHR150

WHHR250

Pressure

WHHR150

WHHR250

Dimensions

front and side

top

Typical specification

Supply and install a WHHR250 Whole House Heat Recovery Unit for wall installation above a cooker hood canopy (WHHRCC) as supplied by Vectaire Ltd, Lincoln Road, Cressex Business Park, High Wycombe, Bucks, HP12 3RH.

This unit should have a choice of five low speed settings so that it can be precisely adjusted on installation to suit the size of dwelling, It should then run continuously at that low speed, but have the facility of being switched to a higher speed for a pre-determined length of time when necessary.

It should save up to 80% of heat recovered and be capable of being fitted with an optional summer switch to prevent heat recovery whilst maintaining proper ventilation levels.

The unit should be BEAB Approved and Marked, CE marked be BRE Digest 398 Compliant.
