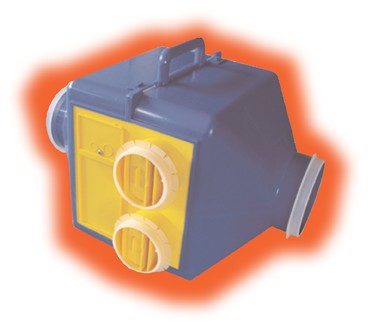

"WH250n" Whole House Ventilation
- General
- Specification
- Compliance
- Range
- Features
- Installation
- Wiring
- Dimensions
- Data
- Typical specification
- Leaflet
- For loft installation
- Provides balanced extract system
- Continuous running at low speed
- Up to five extract points
- BRE Digest 398 Compliant
- Exceeds Building Regulations requirements (including new Document F)
General
- for installation into roof void
- continuous running on low speed
- two speeds - remote switch to boost speed normally fitted in kitchen
- up to five extract points, four for toilets, bathrooms, utility rooms, and one for kitchens
- capacity of four small extract points can be adjusted from 15cubic metres per hour to 30 cubic metres per hour
- supplied with three inlet grilles (larger one for kitchen, two for smaller rooms)
- controls condensation
- quiet operation
Back to top
Specification
- made from robust polypropylene
- motor incorporates thermal overload protection
- complete with two speed switch
Back to top
Compliance
- EN60335-2-80
- EC Low Voltage Directive 73/23-93/68
- EC Directive EMC89/336
- CE marked
Back to top
Outlet Grille
Baffles to adjust capacity on 80mm inlets
Typical specification
Supply and install a WH250n Whole House Ventilation unit suitable for loft installation and with a minimum of five extract points as supplied by Vectaire Ltd, Lincoln Road, Cressex Business Park, High Wycombe, Bucks, HP12 3RH. On installation this unit will run continuously at its low speed, but with the use of the switch included have the facility of being boosted to a higher speed when desired. The unit should provide a balanced extract system and be easy to set up. The unit should CE marked and be BRE Digest 398 compliant.
