Vectaire

Ventilation specialist

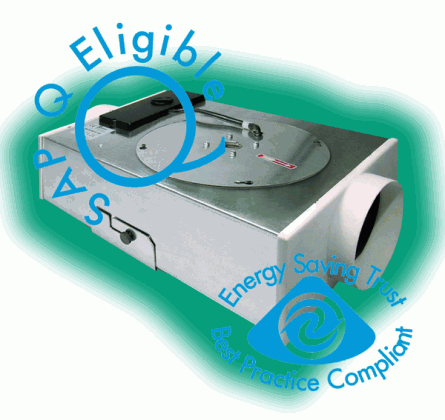

MBOX125/2DC

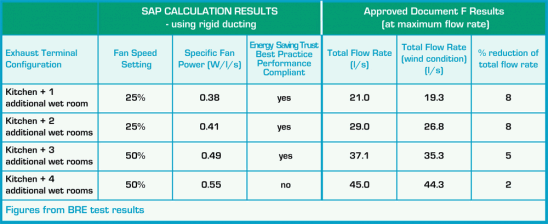

  • SAP Q Eligible
  • Energy Saving Trust Best Practice Compliant
  • Highly efficient, low energy solution to condensation and pollutant control
  • Continuous ventilation in kitchen plus up to 4 additional wet rooms in areas up to 200 square metres
  • Low noise levels
  • Building Regulations Part L and Part F compliant

General

  • SAP Q Eligible, EST Best Practice Compliant whole house mechanical extract ventilation for homes or offices
  • continuous ventilation in kitchen and up to 4 additional wet rooms
  • maximum airflow 404 cubic metres per hour
  • for use in areas up to 200 square metres
  • has integral, overrun timer
  • easy to install, commission and maintain
  • for fitting into lofts, voids, false ceilings or cupboards (can be angled horizontally or vertically)
  • a choice of 4 low (trickle) speeds (set at installation) with boost override
  • boost speed obtainable by user via remote switch/pull cord (ie a volt free contact switch - not supplied) or by a humidistat, thermostat, or PIR sensor using an intermediate, external relay (available separately)
  • very low noise levels
  • low running costs
  • gives extra security by removing need to open windows
  • guaranteed for 3 years
  • Vectaire Ltd can supply all accessories for use with these units, including air filter cassettes, silencers, fire dampers, air valves, ducting, outside grilles and wall cowls


Back to top

Specification

  • compact, ultra low profile unit
  • casing manufactured from steel lined with acoustic material
  • low energy DC external rotor motor has sealed for life bearings
  • backward curved blades dynamically balanced on external rotor motor
  • thermal overload protection
  • service and maintenance panel easily accessible
  • easy plug-in connection cable
  • trickle speed selection switch on casing exterior
  • complete with mounting bracket and anti-vibration plate
  • IPX4 rated


Back to top

Compliance

  • Part L of Building Regulations for enhanced energy saving capability
  • Part F of Building Regulations for

reliable, efficient ventilation

  • complies with IEC 60335-2-80, LVD2006/95/CE and EMC 2004/108/CE European Directive against radio interference and electro-magnetic compatibility
  • CE marked
  • SAP Q Eligible
  • Energy Saving Trust Best Practice Compliant


Back to top

Range

MBOC125/2DC - Low Energy In-Line Whole House Ventilation Unit with DE/EC motor



Back to top

Installation

***Duct Run

Back to top

Wiring

*Basic Wiring*Wiring with Trigger

Back to top

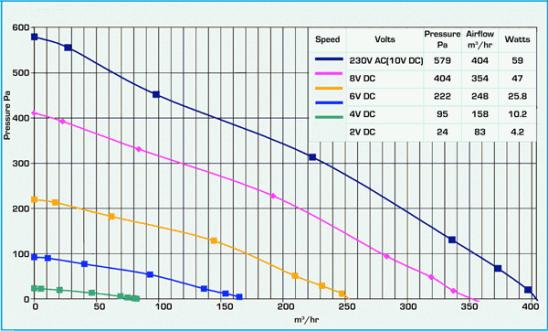

Pressure

*

Back to top

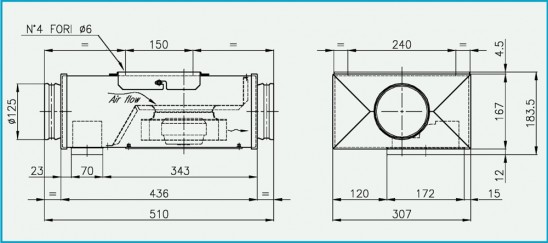

Dimensions

*

Back to top

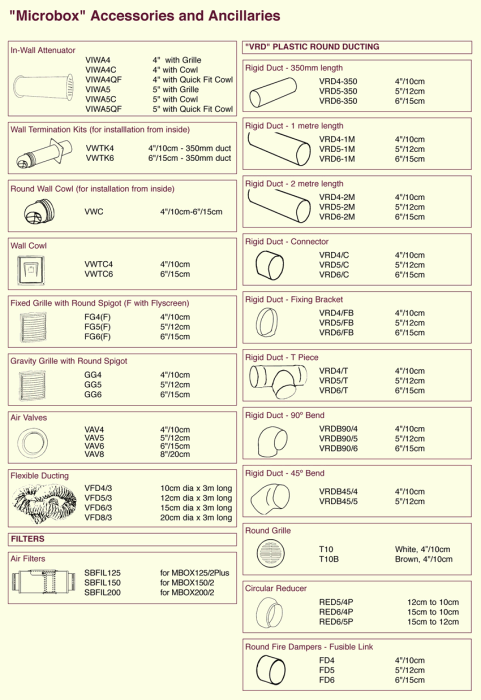

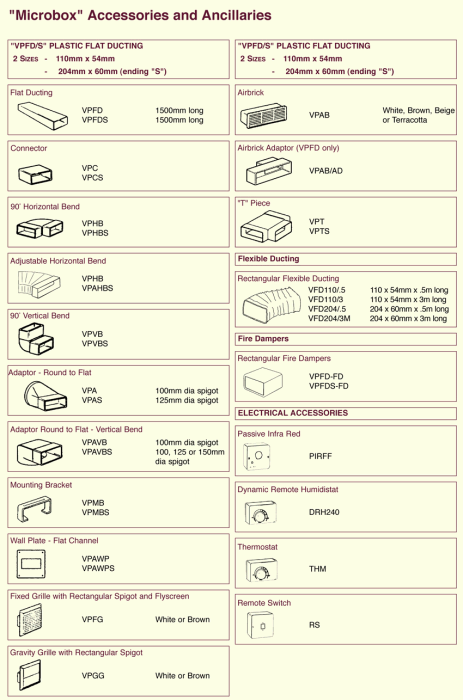

Accessories

**

Back to top
