"MAX" Heavy Duty Wall Fans
- General
- Specification
- Compliance
- Range
- Features
- Installation
- Wiring
- Dimensions
- Data
- Accessories
- Typical specification
- Leaflet

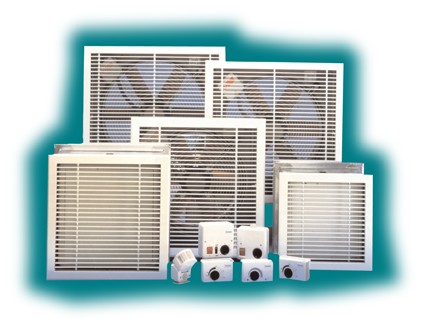

- Wall axial fans for small, medium and large rooms
- Built-in
- 6 models
- Automatic
- Reversible
- 5-speed or variable speed controller
- Galvanised steel wall liner
- Heavy duty inside and outside grilles
- Exceeds Building Regulations requirements (including new Document F)
General
- wall axial fans to exhaust directly outside.
- galvanised telescopic wall liner to allow installation in walls from 190 to 380mm thick.
- heavy duty inside and outside wall grilles
- flush fitting kit for controllers included.
- easy to install and maintain.
max150ab, 230arb and 300arb
- for domestic/commercial use
- high performance rates
- automatic, slow moving, delay action shutters (for silent opening and closing).
- MAX230ARB and 300ARB Reversible.
- 5 speed reversible controller, with neon indicator and on/off switch (not MAX150AB)
- fan shutters may safely be left open for trickle ventilation.
- easy to wire plug and socket connection (MAX230ARB and MAX300ARB).
max350b, 400b and 450b
- for commercial/industrial use
- with variable speed controller
- frame in epoxy painted, corrosion resistant steel plate
- safety grille in steel rod
- blade in reinforced polypropylene
- blade hub in die-cast aluminium•
Back to top
Specification
max 150ab, 230arb and 300arb
- casings formed from shock-proof, high quality, impact resistant, technopolymer with high mechanical strength
- motors of shaded pole type mounted on self lubricating, sealed for life bearings for long life and quiet running
- protected with thermal cut-out
- double insulated
- maximum ambient temperature 40OC
max 350b, 400b and 450b
- class F motor insulation
- thermal overload protection
- IP55 protection
- maximum ambient temperature 60OC
Back to top
Compliance
- CEI61/28 - IEC342-1
- EC Low Voltage Directive 73/23-93/68
- EC Directive EMC89/336
- CE marked
- Key marked (Max 150AB, 230ARB and 300ARB)
Back to top
Range
- MAX150AB - 6"/15cm, built-in, automatic
- MAX230ARB - 9"/23cm built-in, automatic, reversible with 5 speed controller
- MAX300ARB - 12"/30cm built-in, automatic, reversible with 5 speed controller
- MAX350B - 14"/35cm built-in with variable speed controller
- MAX400B - 16"/40cm built-in with variable speed controller
- MAX450B - 18"/45cm built-in with variable speed controller
Back to top
Easy wiring with plug and socket
Fan and wall liner
Heavy duty grille
MAX150AB
MAX230 and 300ARB
MAX350 and 400B
MAX450B

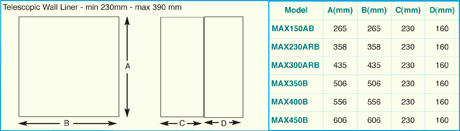

Wall liner

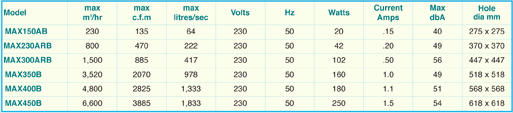

Accessories
Remote humidistat
Remote air quality sensor
Multi fan controller
Remote thermostat
Remote PIRBack to top
Typical specification
Supply and install a high performance MAX350B heavy duty wall fan as supplied by Vectaire Ltd, Lincoln Road, Cressex Business Park, High Wycombe, Bucks, HP12 3RH. This fan is to be suitable for installation in commercial premises into a wall up to 380mm thick using the galvanised telescopic wall liner included. It should have heavy duty inside and outside walls grilles. It is to be operated by a remote variable speed controller, which can be flush fitted with the box included. The fan frame should be in epoxy painted, corrosion resistant steel plate, the safety grille in steel rod, the blade in reinforced polypropylene and the blade hub in die-cast aluminium. The fan motor should have Class F insulation, it should be protected against thermal overload, have IP55 protection and be capable of operating in maximum ambient temperature 60OC. and a galvanised steel telescopic wall linter. Fan to comply with all current IEE, EC and Building Regulations requirements.
