General

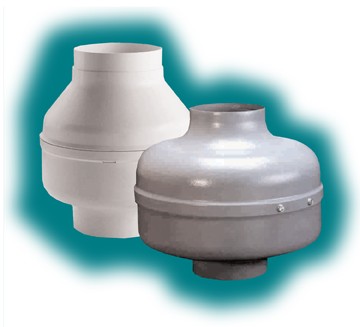

• In-Line centrifugal fans
• For domestic, commercial and industrial use
• 3 sizes and capacities with technopolymer casing (P) models.
• 7 sizes and 10 capacities with steel casing
• High performance extract capacities and pressure.
• Backward curved blades to ensure lowest possible sound and to develop high static pressure.
• Suitable for continuous running
• Fixing brackets included
• Can be used with rigid or flexible ducting
• Can be used with variable speed con troller
• Easy to install.
• Easy to maintain
• "P" models protected by IPX2 rating - all other models to IPX4 Splashproof

Specification

• "P" models have casings from shock- proof, high quality, impact resistant, technopolymer with high mechanical strength and V2 flame retarding features
• Other models have heavy-gauge, spun steel housing with baked epoxy finish inside and outside
• Electrical connections in external plastic box protected to IP54
• "P" model motors of shaded pole type mounted on self lubricating, sealed for life bearings for long life and quiet running
• Other motors are external rotor type mounted on self lubricating, sealed for life bearings for long life and quiet running
• Protected with thermal cut-out
• Fan and motor assembly balanced for quiet and vibration free operation
• For use in ambient temperatures ranging from -20ºC to +60ºC

Compliance

• EN60335-2-80
• EN60335-2-31 ("P"Models only)
• EC Low Voltage Directive 73/23-93/68
• EC Directive EMC89/336
• CE marked
• Key marked

Range

• CIL100P - 4"/10cm technopolymer
• CIL125P - 5"/12cm technopolymer
• CIL150P - 6"/15cm technopolymer

• CIL100B - 4"/10cm metal
• CIL125B - 5"/12cm metal
• CIL150B - 6"/15cm metal
• CIL200A - 8"/20cm metal
• CIL200B - 8"/20cm metal
• CIL250 - 10"/25cm metal
• CIL315A - 12"/31cm metal
• CIL315B - 12"/31cm metal
• CIL355A - 14"/35cm metal
• CIL355B - 14"/35cm metal

Installation

Pressure

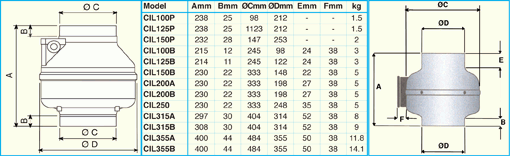

Dimensions

Data

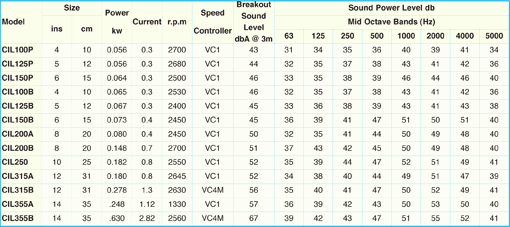

Technical

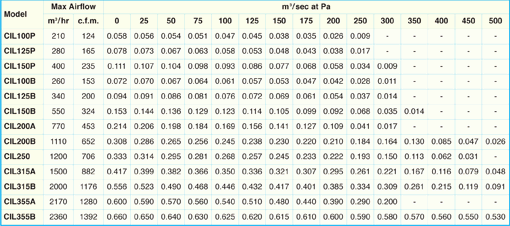

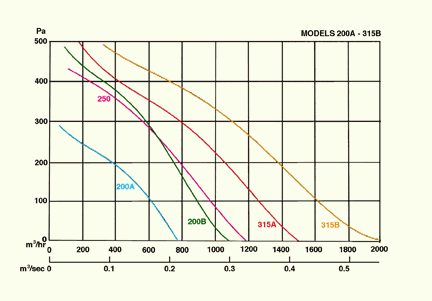

Performance

Accessories

Protection Guard

Duct Clamps

Backdraught Shutters

Filter Cassettes

Silencers

Duct Heaters

Typical specification

Supply and install a CIL150B centrifugal in-line fan as supplied by Vectaire Ltd, Lincoln Road, Cressex Business Park, High Wycombe, Bucks, HP12 3RH. This fan is to be suitable for installation in commercial premises in-line in ducting 6"/15cm diameter. It is to be operated by a remote variable speed controller, come complete with fixing brackets and with housing from heavy-gauge, spun steel with a baked epoxy finish both inside and out. The motor should of a durable external rotor style provided with thermal reset overload protection, and be mounted on self lubricating, sealed for life bearings maintenance free operation and quiet running. The fan should have an external electrical connection box protected to IP54, and the fan itself should be protected to IPX4. Fan to comply with all current IEE, EC and Building Regulations requirements and be keymark approved.
