General

• electrically heated air handling unit
• centrifugal motors
• internal and external versions available
• 14 models, 7 sizes
• airflow from 0.18 to 1.43 m3/sec
• speed controllable
• inlets and outlets fitted with "Mez" type duct connecting flanges
• robust casing construction includes integral fixing points at each corner
• optional casing materials include stainless steel or aluminium - can be powder coat painted to any BS or RAL colour
• air inlets on external units protected by weatherproof cowl and bird guard
• quick and easy to install

OPTIONS AHUs can be supplied with a number of optional features including:

• heat recovery systems
  • cross flow heat exchangers
  • thermal wheel
  • run around coil

• alternative heating source
  • gas fired

• casings
  • can be constructed in a vertical or horizontal layout
  • can be supplied as "flatpack" form to facilitate on-site assembly

Specification

• internally mounted units finished in galvanised steel, double skin with 25mm thick mineral wool slab insulation of 65kg/m3 density (providing high degree of acoustic insulation
• externally mounted units constructed in galvanised steel, single skin with plastic coated exterior
• fans are double inlet, double width, forward curved centrifugal type, mounted on integral anti- vibration mounts
• motors - with thermal overload protection
• heaters - sheathed rod elements with thermal cutouts (manually resettable)
• maximum air temperature 40ºC
• panel filters manufactured from bonded and coated spun glass fibre to EU3 grade, fitted as standard in easily removable housings. Higher degree of filtration can be provided on request

Compliance

• EN60335-2-80
• EC Low Voltage Directive 73/23-93/68
• EC Directive EMC89/336
• EC 89/392

Range

• AHU-E-1-D - duct
• AHU-E-1-R - roof
• AHU-E-2-D - duct
• AHU-E-2-R - roof
• AHU-E-3-D - duct
• AHU-E-3-R - roof
• AHU-E-4-D - duct
• AHU-E-4-R - roof
• AHU-E-5-D - duct
• AHU-E-5-R - roof
• AHU-E-6-D - duct
• AHU-E-6-R - roof
• AHU-E-7-D - duct
• AHU-E-7-R - roof

Features

Control Panel. Easy and quick to install - external wiring kept to minimum. Allows remote switching of fan and heater and is supplied with a duct sensor prewired to the panel. Can be controlled via fire alarm contact or 7 day time clock.

Pressure

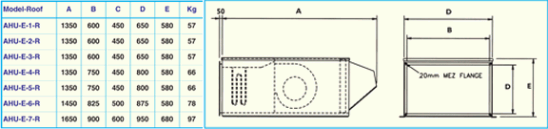

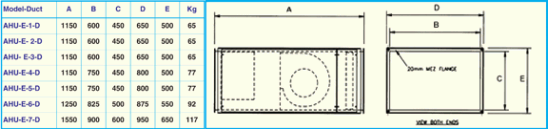

Dimensions

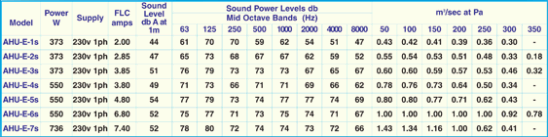

Data

Accessories

Leaflet

Download
