General

• axial fans to exhaust air and fumes directly outside or through short lengths of ducting
• adjustable timer - 3-15 minutes
• dynamic humidistat with night time set back and anti-hunting device
• humidistat fans with anti-vibration gasket
• easy plasterboard ceiling installation with (optional) Ceiling Ring
• window installation uses AWK window kits
• AWKDG double glazing kits available for 10 and 15cm sizes
• whisper quiet operation
• IPX4 - Splashproof - can safely be installed in Zones I and II

Specification

• casings from shockproof and heat resistant plastics
• double insulated motors of shaded pole type mounted on self-lubricating, sealed ball bearings for long life
• motors incorporate thermal cut-out
• maximum ambient temperature - 40°C
• Passive Infra Red sensor range 3m/110 degrees

Compliance

• EN60335-2-80
• EC Low Voltage Directive 73/23-93/68
• EC Directive EMC89/336
• CE marked
• BEAB APPROVED

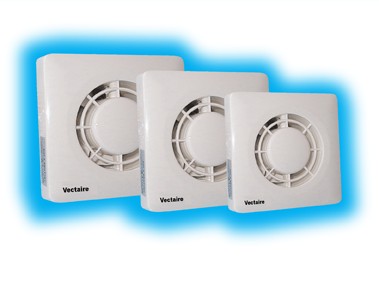

Range

• A10/4, 12/5, 15/6 - standard
• A10/4C, 12/5C, 15/6C - pull cord
• A10/4T, 12/5T, 15/6T - overrun timer
• A10/4HCT, 12/5HCT, 15/6HCT - humidistat, cord, overrun timer, neon
• A10/4PIR - passive infra red, overrun timer
• A10/4HTPIR - passive infra red, humidistat, overrun timer, neon

SELV models available

Features

Humidistat model with neon

PIR model

PIR sensor - activated by proximity

PIR sensor - activation range

Installation

Wall

Ceiling

Window

PIR Wall

Wiring

Standard

Humidistat, Cord and TImer (HCT)

Timer (T), HCT-H2C - Remote Switch

Cord, PIR and HTPIR

Pressure

Dimensions

Data

Accessories

Fixed Grille

Gravity Grille

Wall Vent Kit

Wall Duct Kit

Ceiling Ring

Window Kit

Typical specification

Supply and install an A10/4HCT modular, axial toilet/bathroom/ shower-room fan as supplied by Vectaire Ltd, Lincoln Road, Cressex Business Park, High Wycombe, Bucks, HP12 3RH. The fan is to be suitable for installation either into a ceiling, wall or window, and be complete with an integral, adjustable, dynamic humidistat, an integral adjustable timer and have a pull-cord so that the fan can be operated manually as well as automatically via the humidistat. There should be a neon on the front of the fan to indicate manual control. The fan should be made of shockproof and heat resistant plastic, contain a motor with sealed, self-lubricating bearings and be protected with a thermal cut-out The fan should be double insulated and be suitable for installation into Zones I and II. The fan is to be BEAB Approved and Marked, CE marked, and comply with current EC Low Voltage Directive EMC89/336 and with BSEN60529. The fan should finally comply with Building Regulations requirements for installation into a toilet/bathroom or shower-room
